Upright Storage Cabinet
Construction
● Made of AISI 304 (201 option is available)
● Welded frame and corners with satin (Scotch Brite) finishing
● Thickness: standard 1.2 mm, other thickness also available)
● Easy access to the interior of cabinet
● Low noise sliding door
Description
| Item | Width | Depth | Material | Type of door |
|---|---|---|---|---|
| W100001 | 1000 | 500 | 304 | sliding |
| W100002 | 1200 | 500 | 304 | sliding |
| W100003 | 1500 | 500 | 304 | sliding |
| W100004 | 1000 | 500 | 304 | upswing |
| W100005 | 1200 | 500 | 304 | upswing |
| W100006 | 1500 | 500 | 304 | upswing |
| W100007 | 1000 | 500 | 304 | swing |
| W100008 | 1200 | 500 | 304 | swing |
| W100009 | 1500 | 500 | 304 | swing |
| W100010 | 1000 | 600 | 304 | sliding |
| W100011 | 1200 | 600 | 304 | sliding |
| W100012 | 1500 | 600 | 304 | sliding |
| W100013 | 1000 | 600 | 304 | upswing |
| W100014 | 1200 | 600 | 304 | upswing |
| W100015 | 1500 | 600 | 304 | upswing |
| W100016 | 1000 | 600 | 304 | swing |
| W100017 | 1200 | 600 | 304 | swing |
| W100018 | 1500 | 600 | 304 | swing |
Dimensions
● Standard widths (mm): 1000, 1200, 1500
mm (other widths available)
● Standard depths (mm): 500, 600 mm
● Overall height (mm): 1800 mm
Feel free to contact us should you have
dimensional requirement other than the above.

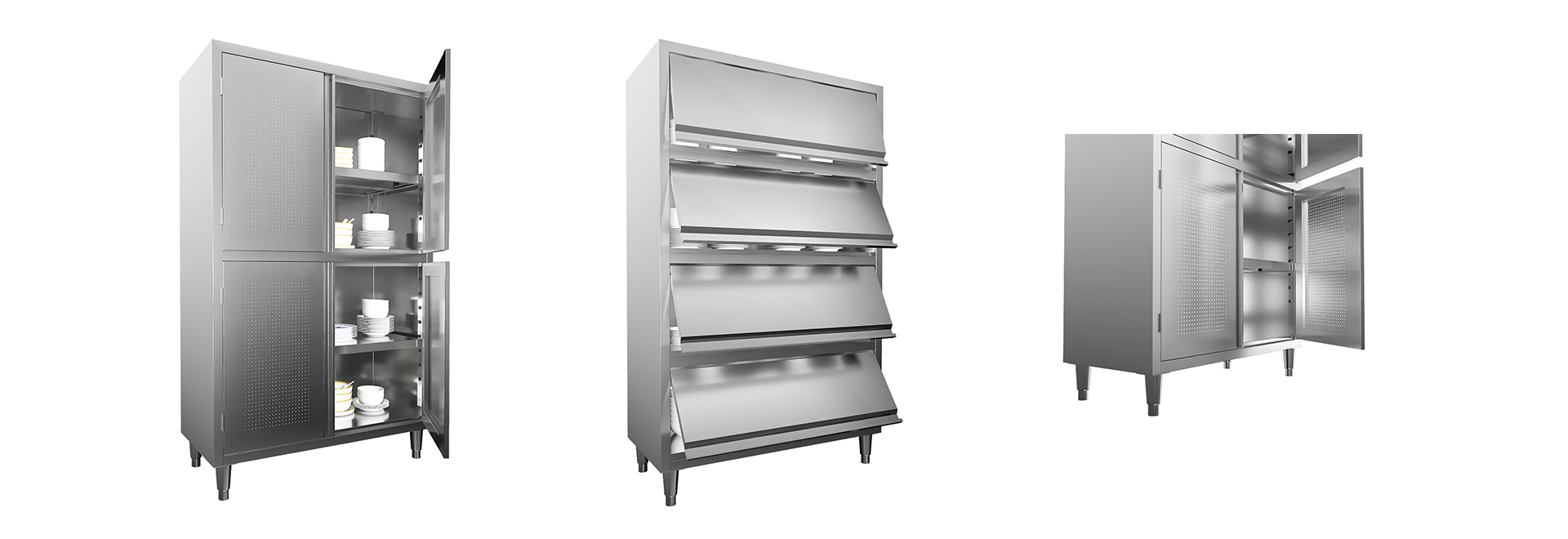

Different configurations:
→ Sliding door (can be installed and taken down without the
use of tools) so that shelf can be taken out for cleaning.
→ Swing door , with heavy duty bullet hinge for sturdiness and
durability, allows door to swing 180 deg so that shelf can be
taken out for cleaning. Doors come with perforations. Mid
and base panels are both 1.2 mm thick, reinforced and of
40 mm profile .
→ Upswing door (at 90°, the door can keep stay still, sliding
smoothly along the slide track by pushing). There is no
intermediate shelf. Mid and base panels are both 1.2 mm
thick, reinforced and of 40 mm profile .
→ All doors are of 1.0 mm thick
● Flexibility: for sliding door and swing door version, there
are 8 level shelf runners runners. User can adjust the height of
intermediate shelf.
Leg:6” adjustable leg
Accessories
● Reinforced intermediate shelf: standard 1.2 mm thick (other thickness available)
