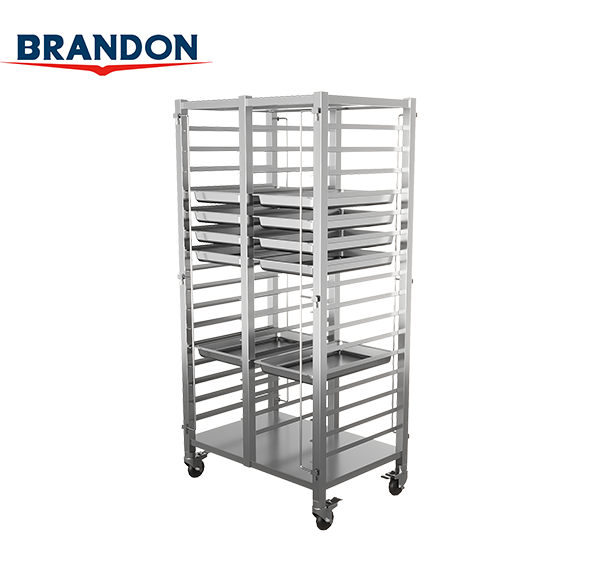

Sheet Pan Rack
Its primary function is to store and transport baking sheets or trays
that are used in the baking process. These carts are essential in
commercial kitchens, especially in bakeries, hotels, and
restaurants, where large volumes of baked goods are produced.
They help in organizing the workspace, improving efficiency, and
ensuring a smooth workflow during baking operations.
Description
| Model | Style | Column | Tier | Dimensions（mmmm） |
|---|---|---|---|---|
| B100001 | Universal | Single | 16x 1 | 490 x 640 x 1650 |
| B100002 | Universal | Double | 16x 2 | 942 x 640 x 1650 |
| B100003 | GN | Single | 16x 1 | 420 x 560 x 1650 |
| B100004 | GN | Double | 16x 2 | 800 x 560 x 1650 |
Knock-down Design
● Reduces transportation and storage costs
● Easy and quick to assemble
Features
● 16 layers per column, total height 1650 mm
● Casters: 4 inches, two with brakes (also available with 4
brakes)
● Frame: 38 x 38 square tube (304)
● Tray runner thickness: 1.5 mm (304)
Style
● Universal Style: Can accommodate 600 x 400 mm trays or GN 1/1
● GN style: Only for GN trays
Knock-down Design
