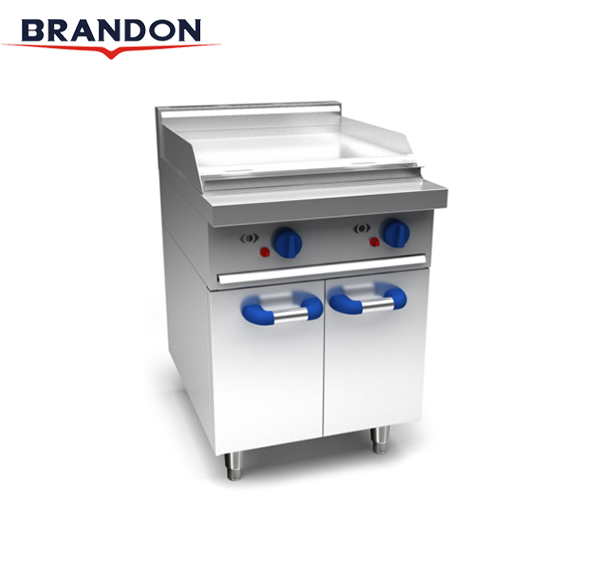

Griddle-MAGH80G24
Features
● Griddle burner is made of heat resistant aluminized steel
● Hi / Lo Flame (optional with thermostatic control)
● Flame supervisory device for safety
● Griddle top is highly polished to ensure even heat across the entire surface, thickness is 19 mm
● Piezo flame ignition
● Stainless steel drip tray to collect oil
● High grade stainless steel: SUS 304 for food contact safety
● Heavy gauge design: 2.0 mm table top; other structural area from 1.2mm to 2.0 mm
● 6” adjustable leg
Gas inlet pressure:
● Natural Gas : 2.0 kPa
● LP Gas : 2.8 kPa
● Town Gas : 1.5 kPa
Gas inlet : DN20
Description
Model | Description | Dimensions (mm) | Gas power |
MAGH80G24 | 24″ Griddle on cabinet | 618 x 800 x (850 +150) | 17,100 btu/h (5 kW) x 2 |
MAGH80GK24 | 24″ Ridged griddle plate on cabinet | 618 x 800 x (850 +150) | 17,100 btu/h (5 kW) x 2 |
MAGH80G36 | 36″ Griddle on cabinet | 918 x 800 x (850 + 150) | 17,100 btu/h (5 kW) x 3 |
MAGH80GK36 | 36″ Ridged griddle plate on cabinet | 918 x 800 x (850 + 150) | 17,100 btu/h (5 kW) x 3 |
MAGH80G24T | 24″ Griddle, counter top | 618 x 800 x (330 + 150) | 17,100 btu/h (5 kW) x 2 |
MAGH80G36T | 36″ Griddle, counter top | 918 x 800 x (330 + 150) | 17,100 btu/h (5 kW) x 3 |
