Convertible Storage Cabinet
Features
● Easy access to the interior of cabinet
● Low noise sliding door
Dimensions
● Standard widths (mm): 1000, 1200, 1500,
1800 (other widths available)
● Standard depths (mm): 600, 800 800,1000
● Overall height (mm): 800 ( optional height 850
also available)
Feel free to contact us should you have
dimensional requirement other than the above.
Accessories
● Reinforced intermediate shelf: standard 1.2
mm thick (other thickness available)
● Door sliding guide
Superior strength:
● Stainless steel inner welded frame
Flat pack (knock down) design:
● As strong as welded construction, meeting rigorous
load bearing test and impact test.
● Do away with weak weldment as commonly seen
due to poor workmanship.
● Low cost of transportation and storage.
● Easy and quick to install.
● Comes with single sided or pass through. Easily
converted from one to another with the right part.
● Doors can easily be installed and removed without
the use of tools.
Flexible:
● 5 level shelf runner runner：user can adjust the height of
intermediate shelf

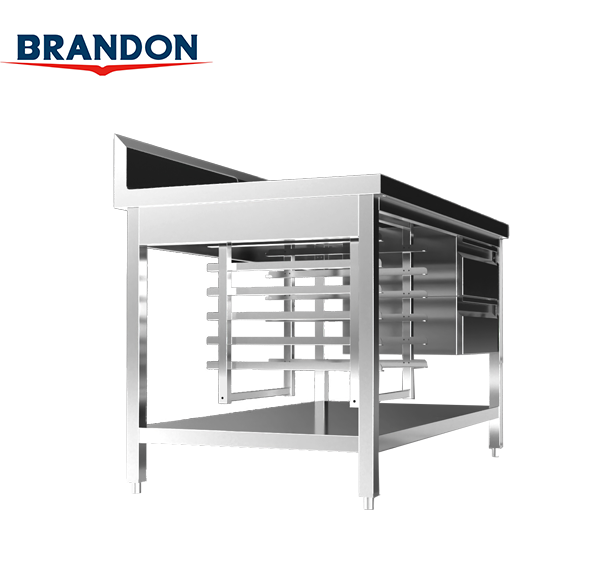

● With the right parts, it can be converted into a work
table , with drawers and GN pan hanger.
Description
Models below are of material 304. Please contact us if you need 201.
| Item | Top reinforcement | Width | Depth | Height | With upstand | Single sided or pass through |
Door |
|---|---|---|---|---|---|---|---|
| H100004 | channel | 1200 | 800 | 800 | No | pass through | sliding |
| H100005 | channel | 1500 | 800 | 800 | No | pass through | sliding |
| H100006 | channel | 1800 | 800 | 800 | No | pass through | sliding |
| H100010 | channel | 1200 | 800 | 800 | No | pass through | upswing |
| H100011 | channel | 1500 | 800 | 800 | No | pass through | upswing |
| H100012 | channel | 1800 | 800 | 800 | No | pass through | upswing |
| H100028 | laminated | 1200 | 800 | 850 | No | pass through | sliding |
| H100029 | laminated | 1500 | 800 | 850 | No | pass through | sliding |
| H100030 | laminated | 1800 | 800 | 850 | No | pass through | sliding |
| H100076 | laminated | 1200 | 800 | 850 | No | single sided | sliding |
| H100077 | laminated | 1500 | 800 | 800 | No | single sided | sliding |
| H100078 | laminated | 1800 | 800 | 800 | No | single sided | sliding |
| H100100 | channel | 1200 | 800 | 800 | Yes | single sided | sliding |
| H100101 | channel | 1500 | 800 | 800 | Yes | single sided | sliding |
| H100102 | channel | 1800 | 800 | 800 | Yes | single sided | sliding |
| H100106 | channel | 1200 | 800 | 800 | Yes | single sided | upswing |
| H100107 | channel | 1500 | 800 | 800 | Yes | single sided | upswing |
| H100108 | channel | 1800 | 800 | 800 | Yes | single sided | upswing |
We have plenty of different specifications for your choice.
The above are the more commonly used construction. If
you do not find the one you need, please feel free to
contact the factory
The photo features storage cabinet with swing door
upward opening to 90°, the door can keep stay still,
sliding smoothly along the slide track by pushing. 2 tier
table top shelf and hot cabinet are also shown.
Table top
● Made of AISI 304 (201 option is available)
● Sound deadening either by channel or laminated
● Welded frame and corners with satin (Scotch Brite)
finishing
● 50 mm high profile
● Thickness: standard 1.2 mm, other thickness also
available)
● Reinforcement: standard stainless steel channel.
Alternative: waterproof laminated reinforcement.
● Upstand (splash guard) , if required.
– Height: standard 150 mm 45 deg (alternative: 100
mm straight upstand), fully welded profile
– Thickness 40 mm
– Radius R9 meeting hygiene requirement.
Leg:Square section (38 x 38 mm) with 6” adjustable leg
