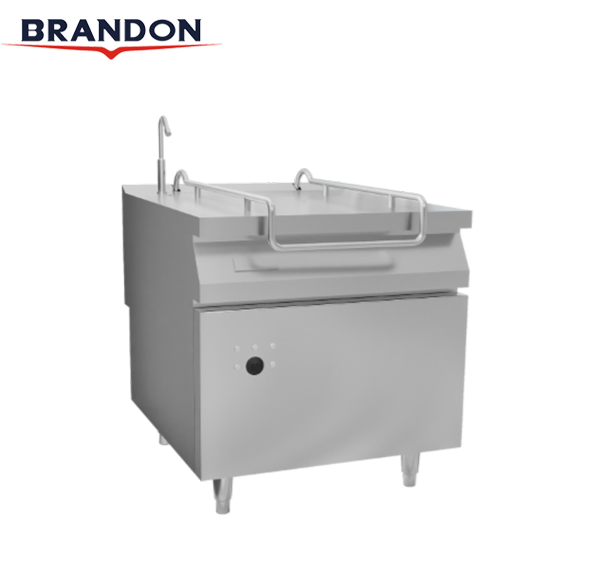

BBP8 Bratt Pan

Features

● Completely SS body, adjustable SS feet convenient for install.
● One punched worktop 1.5mm thickness.
● Double gas safety valves with automatic pulse
electronic ignition.
● Set up stand pilot fire, thermocouple protection device.
● Double jacket lid fulling welding pot body, tilting angle more over 90 degree. 12mm low-carbon steel or
composite steel of the pot body material.
● Gas inlet:DN20
● Water inlet/outlet:DN15

Category:

Description

Model Dimensions (mm) Gas power Power consumption
BBP8 800 x 900 x 850 14 kW 220V/0.25kW
BBP12 1200 x 900 x 850 21 kW 220V/0.25kW
